EV | NV | XV Models

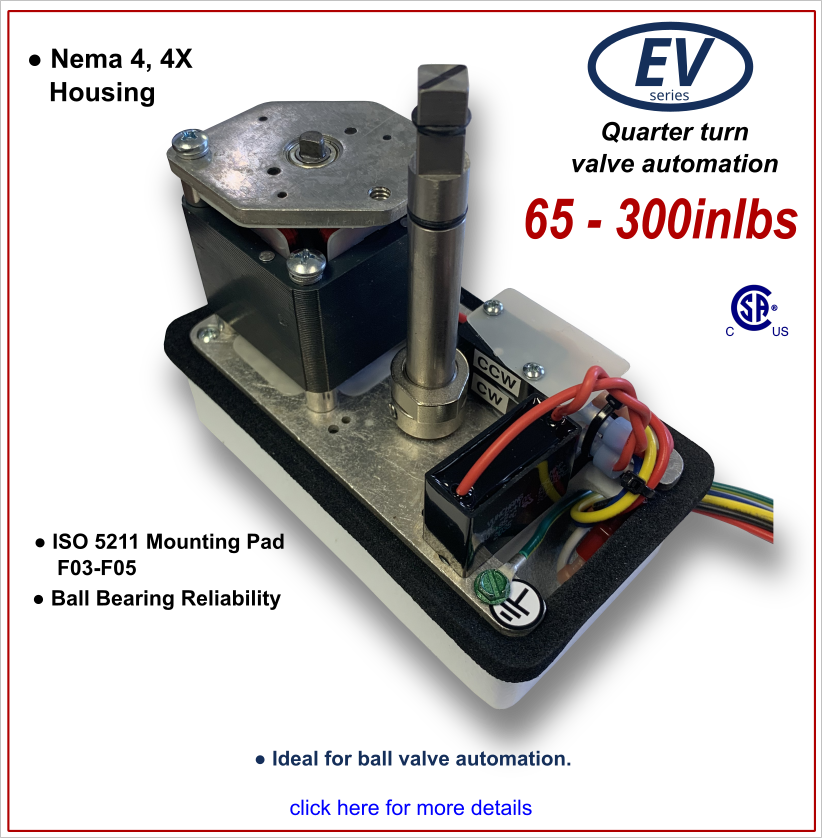

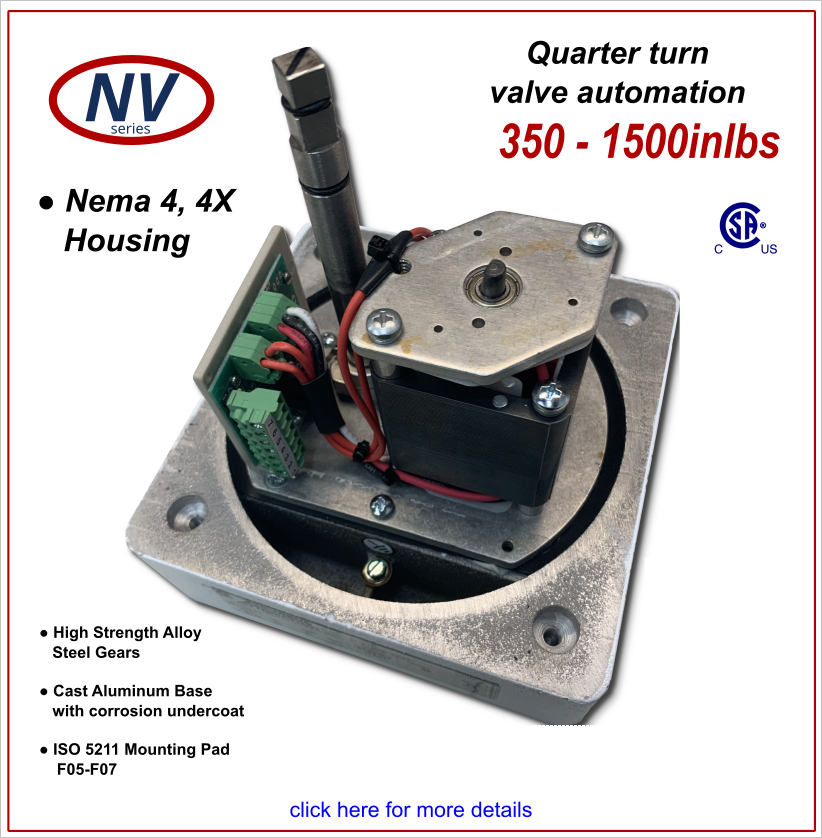

The EV and NV models are NEMA 4, 4X

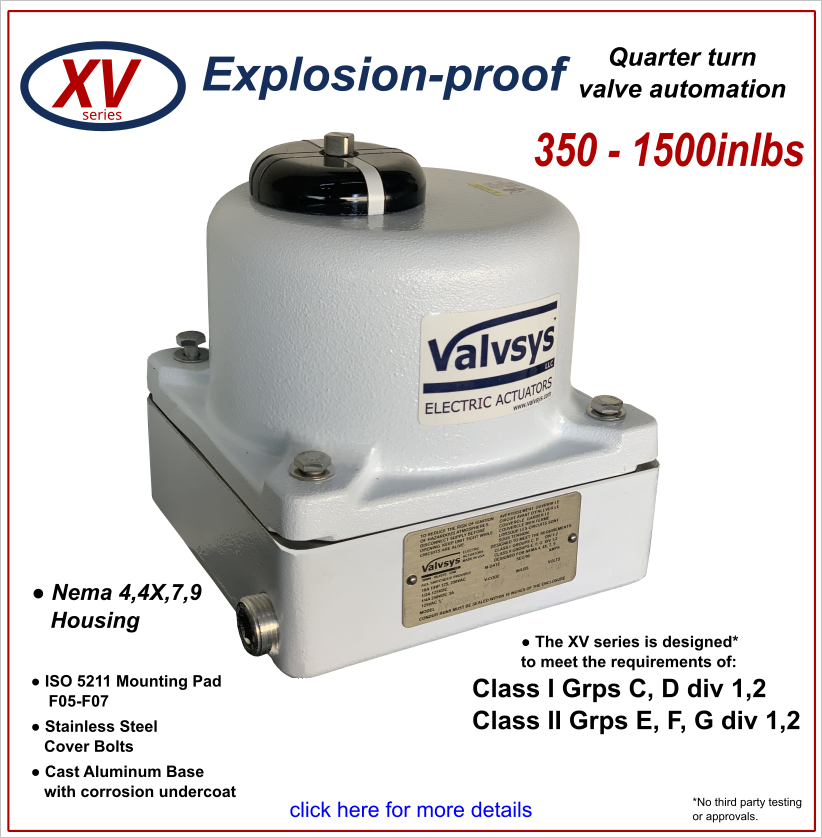

The XV model is NEMA 4,4X,7,9 explosion-proof (designed to meet)
reliable valve automation
sales@valvsys.com
513.870.1234
EV - NV - XV models
Actuators up to 1500inlbs.
Compact spur gear designs with ISO mounting pads.
The EV, NV, and XV models have many options and are customizable to your speeds, voltages and controls.
NEW!!

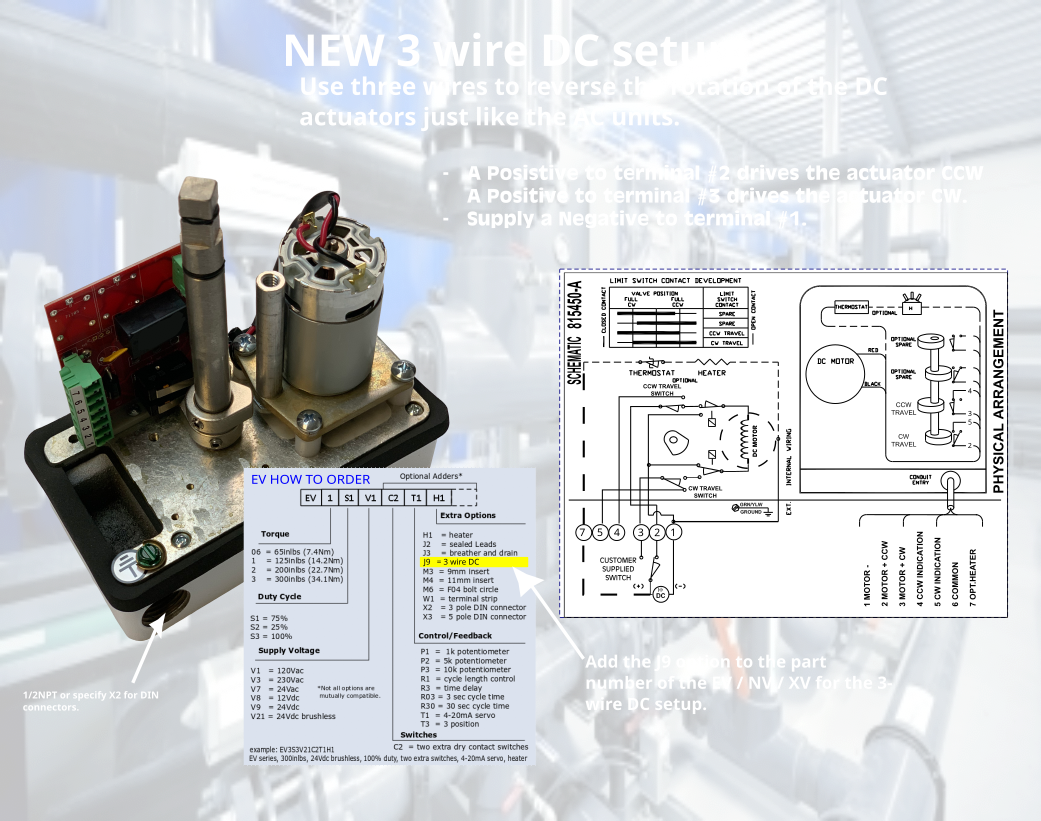

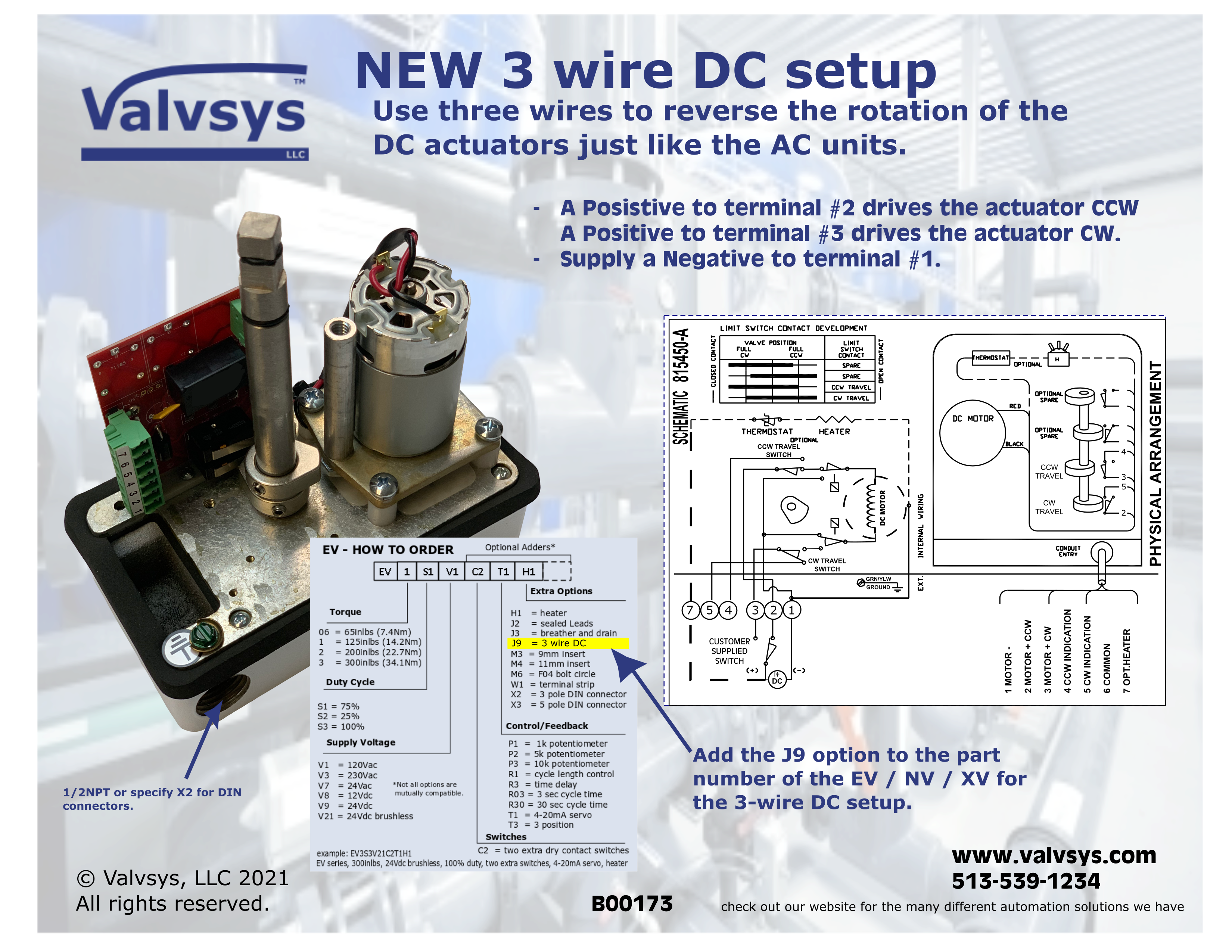

The EV, NV, and XV models have a 3-wire DC hookup option -J9. See the schematic 815450.
Not all options are CSA, consult factory.
Click on the links below.
- EV Dimensions
- NV Dimensions
- XV Dimensions
- EV Use and Care
- NV Use and Care
- Std EV 115/230VAC wiring schematic
- Std EV 12/24VDC wiring schematic
- 115/230VAC std Schematic for NV/XV models
- 12/24VDC std Schematic for NV/XV models
- 115/230VAC Servo T1 for EV-NV-XV
- 12/24VDC Servo T1 for EV-NV-XV
Wiring.
Some of the most common schematics. See inside cover for your specific unit.
The XV model is not CSA
